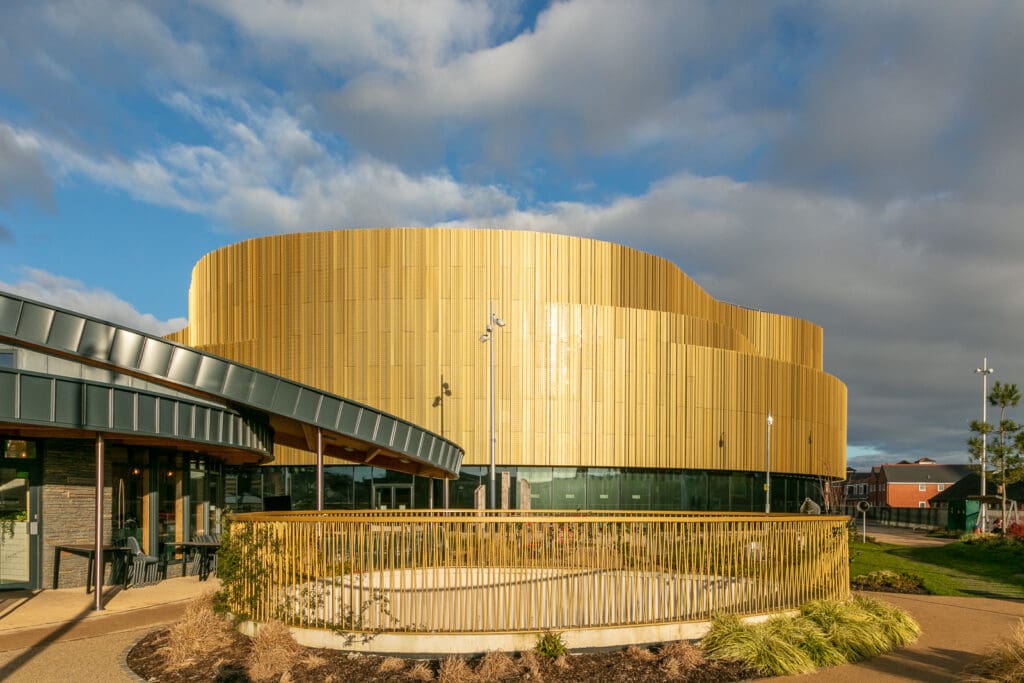

A modern building with curved golden metal exterior panels and large glass windows, set against a partly cloudy sky, with landscaped plants and a railing in the foreground.

Swansea Arena

SCOPE OF WORKS

  • Anodised Curved Rainscreen Cassette Panels
  • Metal Wall Cladding
  • Composite Paneling
  • Fire Barriers
  • Aluminium Helping Hand Handi-Bracket & Rail System
  • A1 Fire rated Insulation
  • SFS

SUPPLY CHAIN

Eurobond, AKV, APL, Rockwool, Fixfast, SIG, Metsec, Blueprint, IRP

Contact Us

Considered to be the crowning jewel of Copr Bay by local media.

MCS had the pleasure of working with Buckingham’s Group for the first time on this project alongside Architects AFL.

The arena is part of the £135 million regeneration plans for Swansea and is considered to be the crowning jewel Copr Bay by the local media.

The Swansea Arena had an extremely complex geometry requiring offsite testing to develop a unique panel system that could work with the lighting system.. This consisted of over 100,000 led lights acting together as a digital façade to broadcast events. Such work could not have been undertaken so efficiently without our close working relationship with AKV: the manufacture of the gold panels.

Design was done by our external design partners – Blueprint, who were vital in this build producing over 900 drawings.

Given the nature of the project, a very high acoustic performance required, This was achieved through desktop engineering in conjunction with APL to develop a bespoke cladding system for the arena box. We consider the system an improvement on the original concept. Ourselves, Blueprint and APL worked tirelessly at tender and during the design stage, reducing the space required while maintaining and improving efficiencies on site.

The project required the skills of our in-house rope access teams due to the weight and accessibility restrictions.

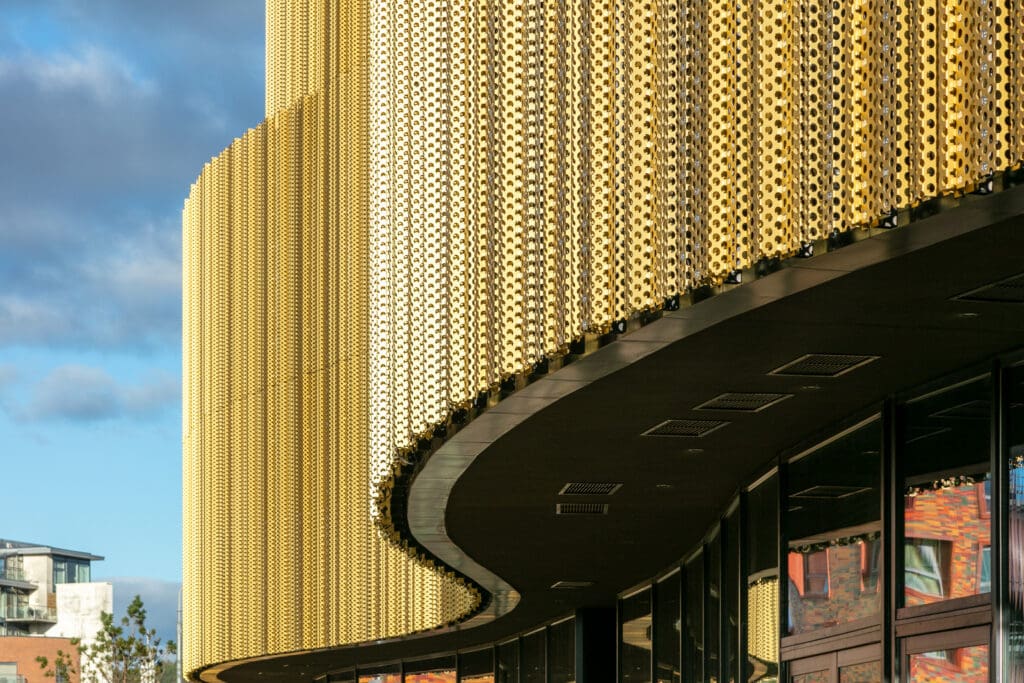

Close-up of a modern building with a curved facade covered in gold-colored, perforated metal panels, reflecting sunlight. The lower part features dark glass windows and overhangs, with part of the sky and nearby buildings visible.

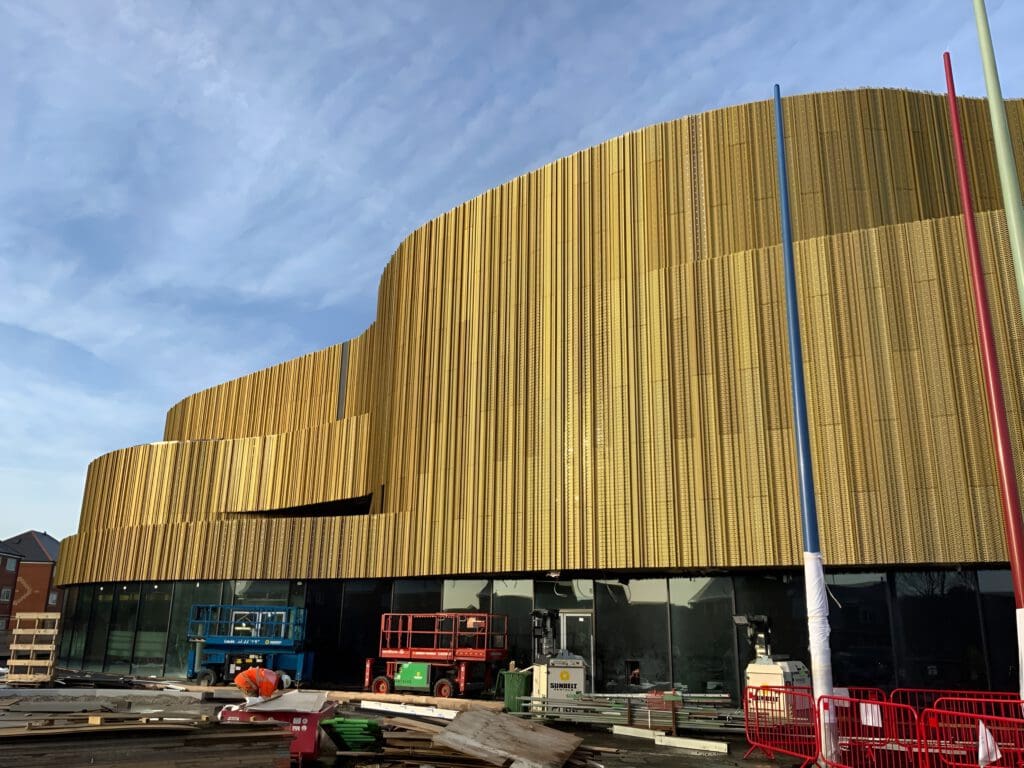

A modern building with a curved, golden metal facade under construction. Construction equipment, materials, and barriers are visible in front of large glass windows on the ground floor, with a blue sky overhead.

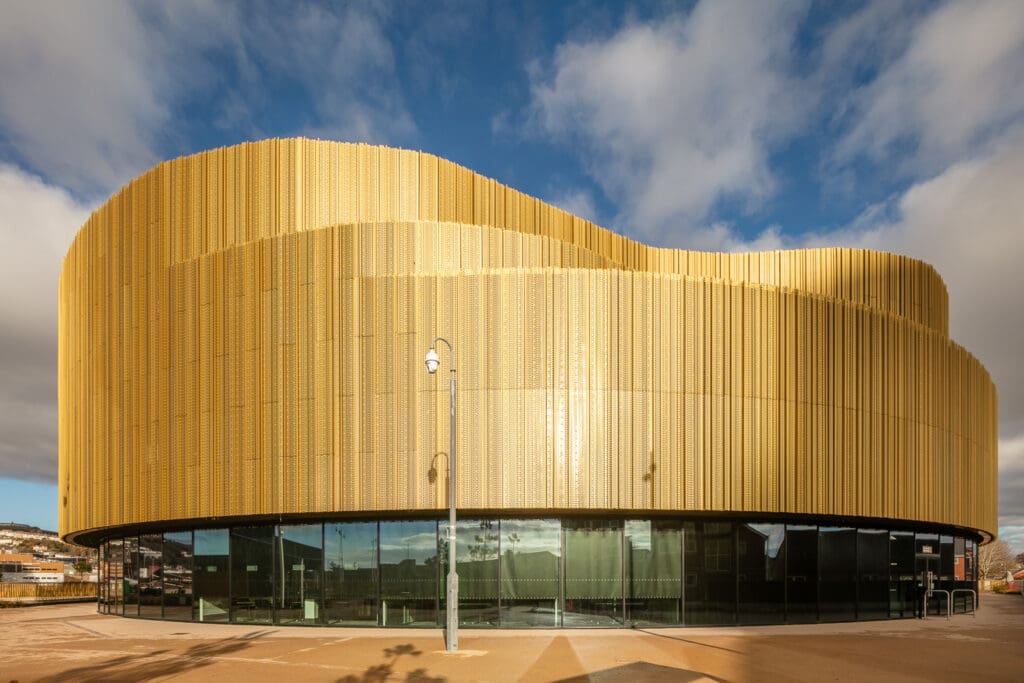

A modern building with a curving gold-colored exterior and large glass windows at the ground level, set against a blue sky with scattered clouds.

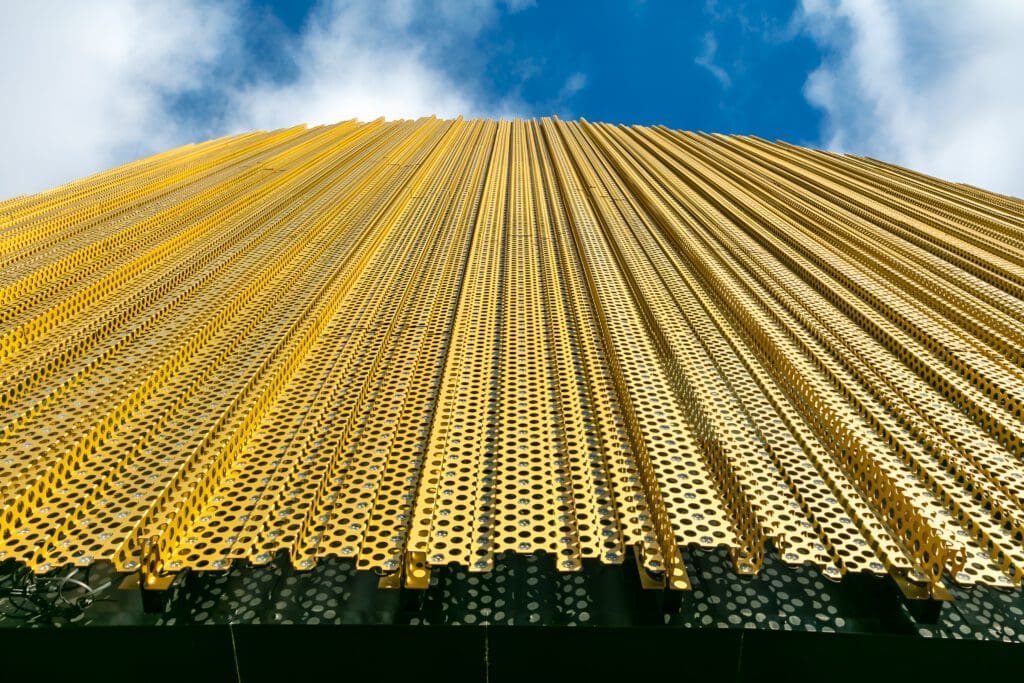

A low-angle view of a modern building facade covered in vertical, perforated gold metal panels against a blue sky with clouds.

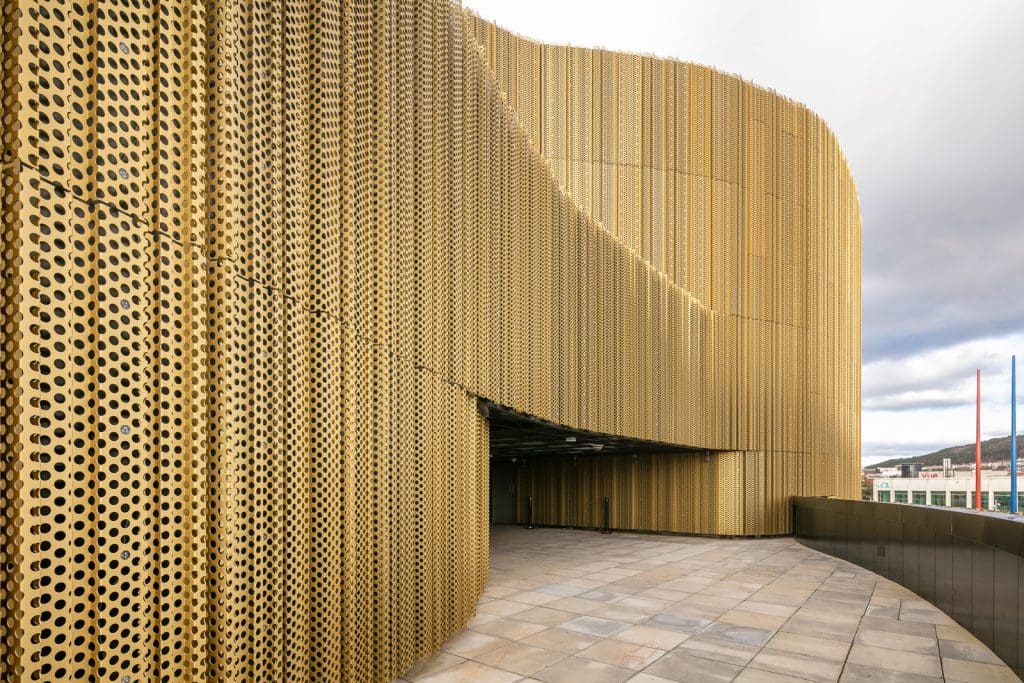

Curved building facade with perforated golden metal panels, creating a modern, textured surface. The ground is tiled, and the sky is partly cloudy in the background.

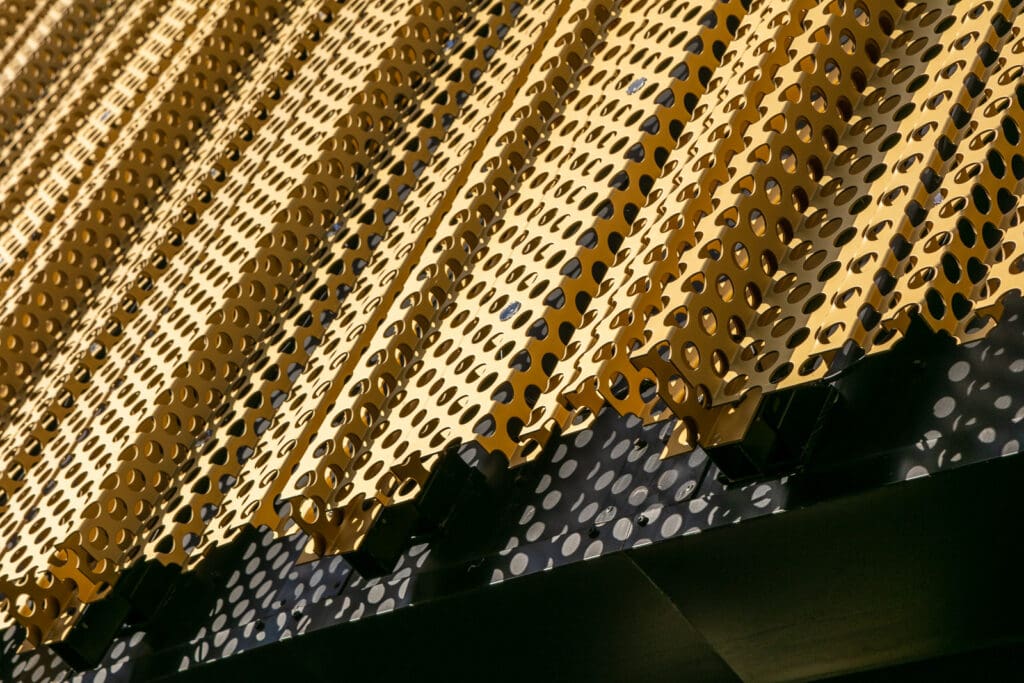

Close-up of a modern architectural facade featuring angled, gold perforated metal panels with circular holes, casting shadows on a black surface with white dots below.
